ASTM A179 Carbon Steel Fin Tube Extruded Type With Al1060 For Air Cooled Chiller

Name: ASTM A179 Carbon Steel Fin Tube Extruded Type With Al1060 For Air Cooled Chiller
Brand: Yuhong
Price: 1 USD

Quality ASTM A179 Carbon Steel Fin Tube Extruded Type With Al1060 For Air Cooled Chiller wholesale

Brand Name : Yuhong

Model Number : ASTM A179

Certification : DNV, BV, PED, LR, ABS, TS, CCS

Place of Origin : China

MOQ : 100KGS

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000 ton/month

Delivery Time : 7-45DAYS

Packaging Details : Ply-wooden Case /Iron Case/ Bundle with Plastic Cap

Fin Pitch Tolerance : ±0.1mm

Test : HT, ET

Tube Type : Straight, U Bend

Base Tube Material : Carbon Steel, A106, A179, A192, A210

Length : According to clients' need

Extrusion Process : Continuous Extrusion

Fin Thick : 0.2 - 0.4 mm

Fin Material : Aluminum, Copper

Contact Now

ASTM A179 Carbon Steel Fin Tube Extruded Type With Al1060 For Air Cooled Chiller

Product Overview

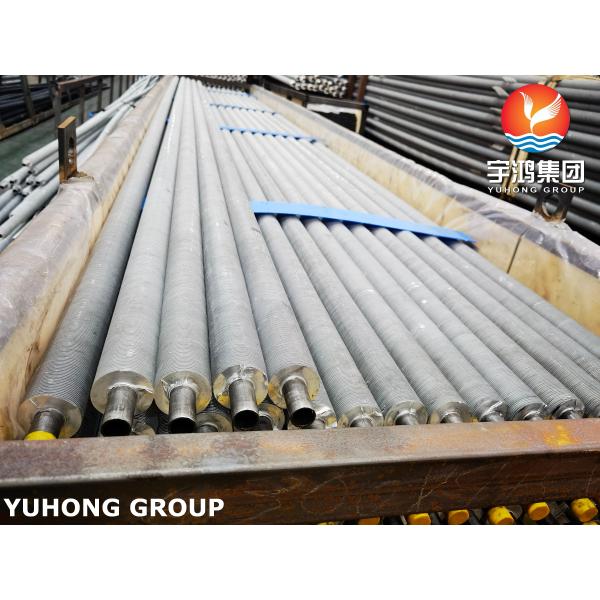

The extruded fin tube is manufactured by inserting a carbon steel seamless tube (ASTM A179) into a pure aluminium Al1060 sleeve, followed by a high-pressure extrusion process that forms integral fins from the aluminium sleeve. This method ensures a perfect metallurgical bond between fins and tube, eliminating air gaps and providing maximum thermal conductivity.

Chemical Composition of ASTM A179 (Base Tube)

Element	C	Mn	P (max)	S (max)
Content (%)	≤ 0.06	0.27–0.63	≤ 0.035	≤ 0.035

Mechanical Properties of ASTM A179

Property	Requirement
Tensile Strength	≥ 325 MPa
Yield Strength	≥ 180 MPa
Elongation	≥ 35%
Hardness	≤ 72 HRB

Advantages

Superior heat transfer efficiency due to firm aluminium-to-steel bonding.
Lightweight and high conductivity of Al1060 provides excellent thermal performance.
Corrosion protection → Aluminium fins shield the carbon steel tube from environmental damage.
Durability → Withstands vibration, thermal cycling, and long service periods.
Cost-effective → Combines low-cost carbon steel tubing with high-conductivity aluminium fins

Applications in Air Cooled Chiller

Air cooled chillers in HVAC and industrial cooling systems
Air cooled condensers in power plants and chemical plants
Process gas coolers in petrochemical industries
Cooling sections in refinery air coolers and compressor stations
