Stainless Steel Seamless Tube TP304, 1.4301 Extruded Fin Tube For Air Cooler

Name: Stainless Steel Seamless Tube TP304 14301 Extruded Fin Tube For Air Cooler
Brand: Yuhong
Price: 1 USD

Quality Stainless Steel Seamless Tube TP304, 1.4301 Extruded Fin Tube For Air Cooler wholesale

Brand Name : Yuhong

Model Number : TP304, 1.4301

Certification : DNV, BV, PED, LR, ABS, TS, CCS

Place of Origin : China

MOQ : 100KGS

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000 ton/month

Delivery Time : 7-45DAYS

Packaging Details : Ply-wooden Case /Iron Case/ Bundle with Plastic Cap

Base Tube Specification : EN10217-7

Material : Aluminum 1060

Finheight : 15mm

Size : customized

Product : Fin Tubes or Finned Tube

Fpi : 11

Origin : China

Application : Heat Exchangers, Air Coolers, Condensers

Contact Now

Stainless Steel Seamless Tube TP304, 1.4301 Extruded Fin Tube For Air Cooler

Product Overview

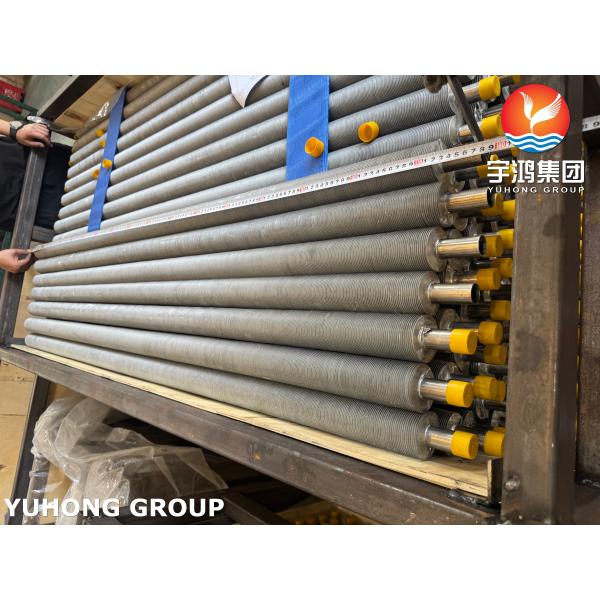

The extruded fin tube is manufactured by mechanically extruding aluminium fins onto a TP304 (1.4301) stainless steel seamless tube. During the process, a thick aluminium sleeve is placed over the base tube and then extruded under high pressure to form integral fins. This method produces exceptional bonding strength, ensuring no air gap between fin and tube, and achieving maximum heat transfer efficiency.

Chemical Composition of TP304 / 1.4301 Stainless Steel (Base Tube)

Element	C (max)	Mn (max)	P (max)	S (max)	Si (max)	Cr	Ni
Content (%)	0.08	2.00	0.045	0.030	1.00	18.0–20.0	8.0–11.0

Advantages of Extruded Fin Tube

Excellent fin-to-tube bonding → No gaps, ensuring outstanding thermal conductivity.
High corrosion resistance → Stainless steel tube resists oxidation, scaling, and chemical attack.
Durability → Withstands high pressure, vibration, and temperature fluctuations.
Efficient performance → Aluminium fins provide superior heat transfer with lightweight design.
Extended service life → Reduced fouling and maintenance in harsh operating environments.

Applications in Air Cooler

Air-cooled heat exchangers in petrochemical and refinery plants
Fin-fan coolers in power generation
Condensers and gas coolers in chemical and fertilizer industries
Offshore and marine coolers, where corrosion resistance is essential
